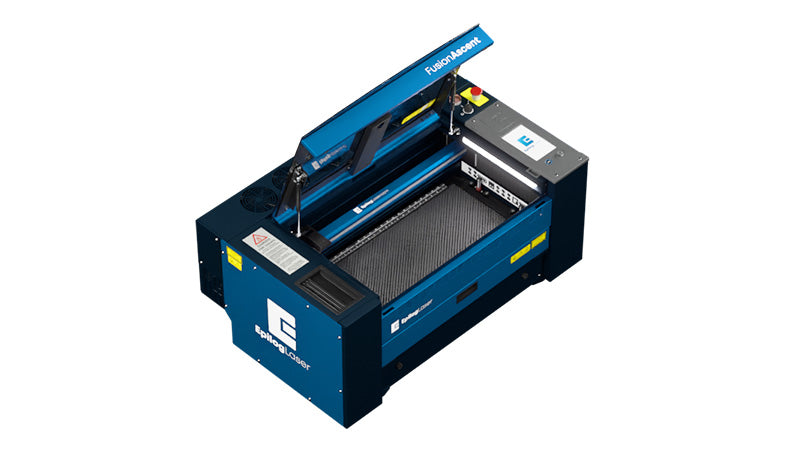

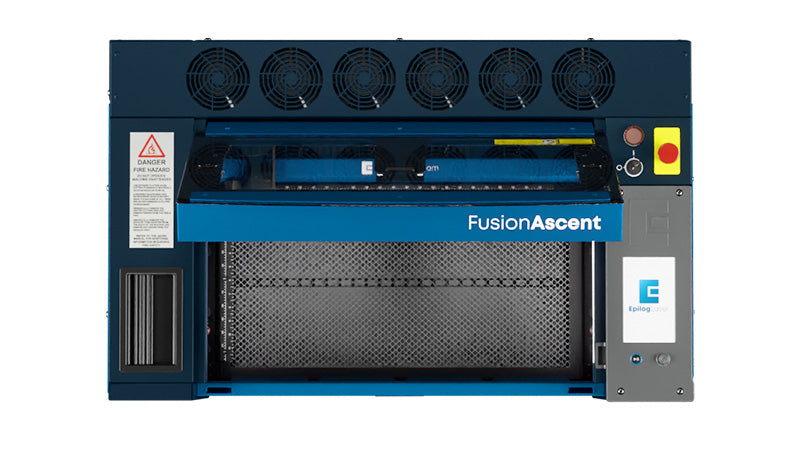

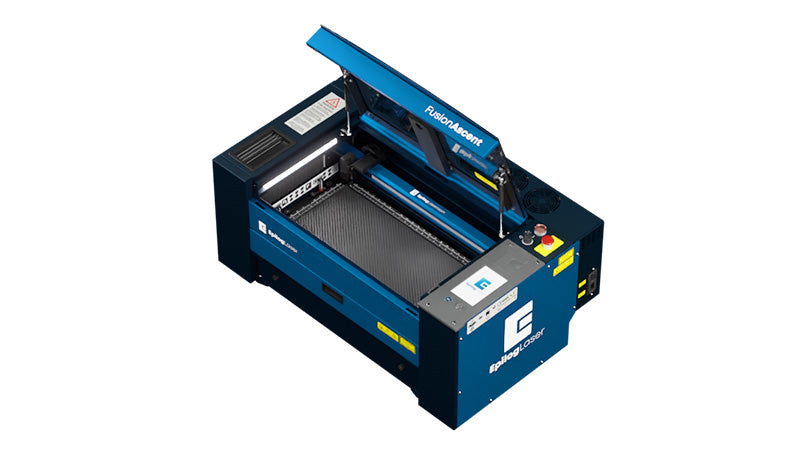

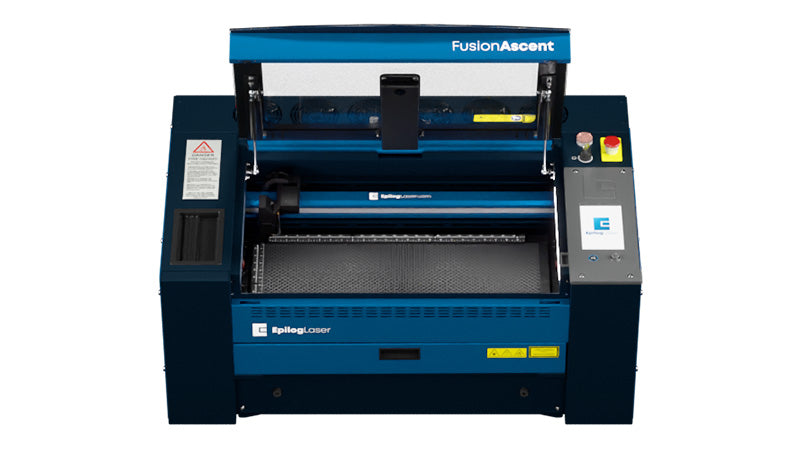

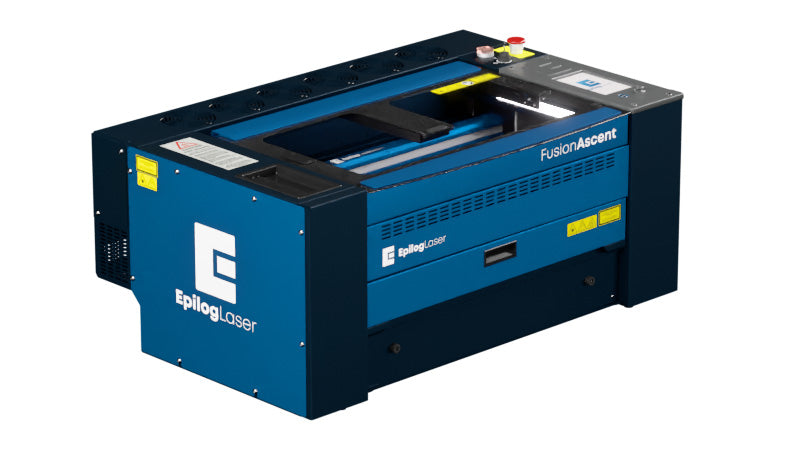

The Fusion Ascent 12 by Epilog Laser is the compact desktop model in the Next Gen Series. This advanced CO2 laser engraving, cutting, and marking system (with optional fiber capabilities) is engineered for high-performance applications in limited spaces, delivering exceptional speed, precision, and reliability to overcome limitations in throughput, material versatility, and workflow efficiency. It supports a broad range of materials, including wood, acrylic, textiles, paper, plastics, and more, while enabling faster job completion and superior results.
The Fusion Ascent 12 is an ideal choice for desktop laser processing, offering professional-grade features in a compact 24" x 12" work area suitable for small businesses, offices, or dedicated workstations.
Wattage Options
Higher wattage allows for increased engraving speeds while maintaining consistent depth and enables cutting through thicker materials in a single pass. The Fusion Ascent 12 is available with CO2 laser options of 30W, 40W, and 60W, as well as a 30W MOPA fiber laser option. If a machine with your desired wattage or laser type is not currently in stock, you can order one through your distributor.
Do I need the Exhaust and/or Filtration System Accessory?
All lasers require either external exhaust to the outside or an internal filtration unit to remove dust, fumes, and debris from the air. You may use a filtration or exhaust system listed with the machine or source one independently. The Fusion Ascent 12 requires an exhaust fan rated at a minimum appropriate CFM for effective operation (consult specifications for exact requirements based on your setup). Factors such as duct length, type, and configuration can affect actual airflow. External exhaust typically uses metal ducting connected to a 4" port on the back of the system.
Recommended dust collector: 1.5HP DC3 Portable Dust Collector Motor Blower (no bag or hose) at Penn State Industries
Recommended filter unit: Filtrabox Compact X Fume Extractor | Filtrabox.com
Shipping
All machinery is shipped in 1-2 weeks with a lift gate.
Training
Online training is included with the system through the Epilog Laser Training Suite, covering setup, basic design concepts, material processing, and maintenance. For in-person training, please contact the distributor in your area to arrange additional packages.
Is additional cooling required?
No, the Fusion Ascent 12 uses air-cooled laser sources (metal/ceramic waveguide tube design). This enables higher firing speeds, extended source life, and eliminates the need for additional cooling systems.
How do I get support?
Epilog lasers include a comprehensive warranty covering parts, including the laser source. In the event of an issue, contact our Technical Support team for diagnosis and parts shipment. The system is designed for straightforward user repairs, supported by step-by-step video instructions in the Training Suite. Lifetime phone assistance is provided even after the warranty period expires.
Where is the system manufactured?
We are proud to be an American company. All Epilog lasers are designed, engineered, and supported in the USA at our global headquarters in Golden, CO.
Why should I work with my distributor instead of buying online?
Our distributors offer unmatched expertise with Epilog equipment. They provide in-person demonstrations, application testing, machine selection guidance, and access to the full product range. They serve as your local resource for ongoing support. Find your distributor by clicking here.
I can't purchase with a credit card.
Your distributor accommodates various payment methods, including purchase orders and lease arrangements. PayPal transfers from bank accounts are also accepted.
I have more questions!
Contact us at 303-277-1188 for assistance with any inquiries. If you are not ready to purchase, complete the form on our website to receive a full product line brochure and sample kit.
The higher the wattage, the thicker the materials you can cut through and the faster you can run the laser to get to the same engraving depth. A 30/40-watt laser source cuts up to 1/4" thick hardwoods and acrylics in a single pass.
| Material | Engrave | Cut |
|---|---|---|
| Wood | x | x |
| Acrylic | x | x |
| Fabric | x | x |
| Glass | x | |
| Coated Metals | x | |
| Ceramic | x | |
| Delrin | x | x |
| Cloth | x | x |
| Leather | x | x |
| Marble | x | |
| Matte Board | x | x |
| Melamine | x | x |
| Mother of Pearl | x | x |
| Paper | x | x |
| Mylar | x | x |
| Pressboard | x | x |
| Rubber | x | x |
| Wood Veneer | x | x |
| Fiberglass | x | x |
| Painted Metals | x | |
| Tile | x | |
| Plastic | x | x |
| Cork | x | x |
| Corian | x | x |
| Anodized Aluminum | x | |
| Stainless Steel | * | |
| Brass | * | |
| Titanium | * | |
| Bare Metals | * | |
| * CO2 lasers will mark bare metals when coated with a metal marking solution. For more information, visit our laser metal marking page. | ||
| Do you have a material you would like us to test? Our Applications Team would be happy to assist you. | ||
| Technical Specifications | |
|---|---|
| Engraving Area | 24" x 12" (610 x 305 mm) |
| Max Material Thickness | 7" (178 mm) |
| Laser Wattage | CO2: 30, 40, or 60 watts; Fiber: 30W MOPA (optional) |
| Laser Source | Air-cooled CO2 metal/ceramic waveguide tube, 10.6 micrometers (or air-cooled fiber with collimator, 1065 nm, M2 < 1.1); fully modular and field replaceable where applicable. |
| Intelligent Memory Capacity | Multiple file storage with rolling buffer for files of any size. |
| Air Assist | Attach an air compressor to the included Air Assist to remove heat and combustible gases by directing a constant stream of compressed air across the cutting surface. |
| Laser Dashboard | The Laser Dashboard™ controls settings from a wide range of software packages, including design programs, spreadsheets, and CAD applications. |
| IRIS™ Camera System | 1 overhead camera + registration for precise positioning and alignment. |
| Operating Modes | Optimized Raster, Vector, and Combined modes. |
| Motion Control System | Brushless DC servo motors with 5G acceleration. |
| X-Axis Bearings | Ground and polished stainless steel, Teflon-coated, self-lubricating bearings. |
| Belts | Advanced precision drive belts for high-speed, reliable performance. |
| Resolution | Fully flexible and user-controlled from 75 – 1200 DPI. |
| Speed and Power Control | Maximum engraving speed: 3000 mm/s (120 IPS) with 5G acceleration. Computer-controlled in 0.001 increments up to 100%. Color mapping links Speed, Power, Frequency, and Raster/Vector mode. |
| Print Interface | USB, Wireless, and Ethernet connectivity. Compatible with current Windows operating systems. |
| Size (W x D x H) | 41.76" x 25.9" x 20.15" (1060.7 x 657.9 x 511.8 mm) |
| Weight | 147 lbs (66.7 kg) |
| Electrical Requirements | 110 to 240 volts, 50 or 60 Hz, single phase |
| Maximum Table Weight | Static: 90 lbs (40.8 kg) | Lifting: 60 lbs (27.2 kg) |
| Ventilation System | External exhaust to the outside or internal filtration system required (minimum appropriate CFM; consult setup for details). One 4" diameter output port. |
